  1. Página inicial > Produto > Tablet robusto > Série ST9

Harmonia ST9-R2OS4.1

  • In Stock: 99999
  • Category: Série ST9
$0 $0

O tablet robusto ST9-R2 HarmonyOS é voltado para a indústria pesada. Leve e fácil de segurar, ele se encaixa em inspeções de linha de produção e manutenção de equipamentos. Aproveitando a cadeia de suprimentos doméstica, ele corta custos e oferece suporte à implantação em massa. Oferece impressão digital + verificação de identidade, uma arquitetura de segurança de software-hardware e proteção IP65 para durabilidade servindo como um terminal móvel econômico e controlável internamente para a indústria pesada.

Buy Now Add to shopping cart
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

Visão Geral do Produto

O ST9-R2H é um tablet resistente de 8 polegadas equipado com o processador octa-core Rockchip RK3588 (4×[email protected] + 4×[email protected]) e o sistema operacional de código aberto HarmonyOS 4.1. Oferece configurações de armazenamento flexíveis (8GB/256GB, 16GB/256GB ou 8GB/512GB, 16GB/512GB opcionais), tela IPS de 8 polegadas com resolução 1200×1920 (1000 nits para a versão de alta luminosidade), câmera frontal de 5MP/traseira de 13MP, bateria de 5000mAh (7.7V), conectividade 4G LTE, WiFi 6 e Bluetooth 5.0. Dotado de interfaces abrangentes (HDMI, 2×USB 3.0), classe de proteção IP65 e módulos expansíveis, proporciona alto desempenho para aplicativos IoT do ecossistema HarmonyOS e usos industriais.

Características Principais

  • Sistema operacional de código aberto HarmonyOS 4.1 com processador octa-core Rockchip RK3588 (4×[email protected] + 4×[email protected])
  • GPU ARM Mali G610, tela IPS de 8 polegadas (1200×1920; 1000 nits para a versão de alta luminosidade)
  • Configurações de armazenamento flexíveis: 8GB/256GB, 16GB/256GB (8GB/512GB, 16GB/512GB opcionais)
  • Câmera frontal de 5MP + traseira de 13MP (com flash), suporte a caneta estilográfica/touch com mãos úmidas
  • 4G LTE (módulo SLM770A), WiFi 6 (802.11ax) e Bluetooth 5.0 (2-em-1 WiFi/Bluetooth)
  • Proteção IP65 (à prova de poeira e água), resistência a quedas de 1.2m (certificado MIL-STD-810G)
  • Interfaces abrangentes: HDMI, 2×USB 3.0, 1×USB 2.0, RS232, Type-C (OTG/carga rápida)
  • Opcional: scanner de código de barras 1D/2D (NLS-N1/M1/SE2707) com módulos industriais expansíveis

Especificações Técnicas (ST9-R2H)

Sistema OperacionalHarmonyOS 4.1 (código aberto)
ProcessadorRockchip RK3588 (octa-core; 2.4GHz) - Cortex-A76×4 @2.4GHz, Cortex-A55×4 @1.8GHz
GPUARM Mali G610
RAM/ROM8GB/256GB, 16GB/256GB (8GB/512GB, 16GB/512GB opcionais)
Tela8 polegadas IPS, 1200×1920 pixels; 1000 nits (apenas versão de alta luminosidade)
Tela TouchTouch de 10 pontos, suporte a caneta estilográfica, suporte a touch com mãos úmidas
CâmeraFrontal: 5MP; Traseira: 13MP (com flash)
Bateria5000mAh; 7.7V
WWANFDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66; TDD_LTE: B40; WCDMA: B1/B2/B4/B5/B8; GSM: 850/900/1800/1900
Módulo: SLM770A (EC25-AUX para a América do Norte)
GPSGPS
WiFi802.11a/b/g/n/ac/ax (2.4G/5G), Ponto de Acesso Sem Fio (Mobile AP); Suporte a WiFi6; 2-em-1 WiFi/Bluetooth
BluetoothVersão 5.0
NFC13.56 MHz, Alcance: 1-3cm; Compatível com ISO/IEC 14443A/B; ISO/IEC 15693
SensoresSensor de luz, sensor magnético, sensor de pressão, sensor G, sensor de distância, acelerômetro, giroscópio, motor de vibração
Dimensões236×144×17.4mm
Peso700±50g

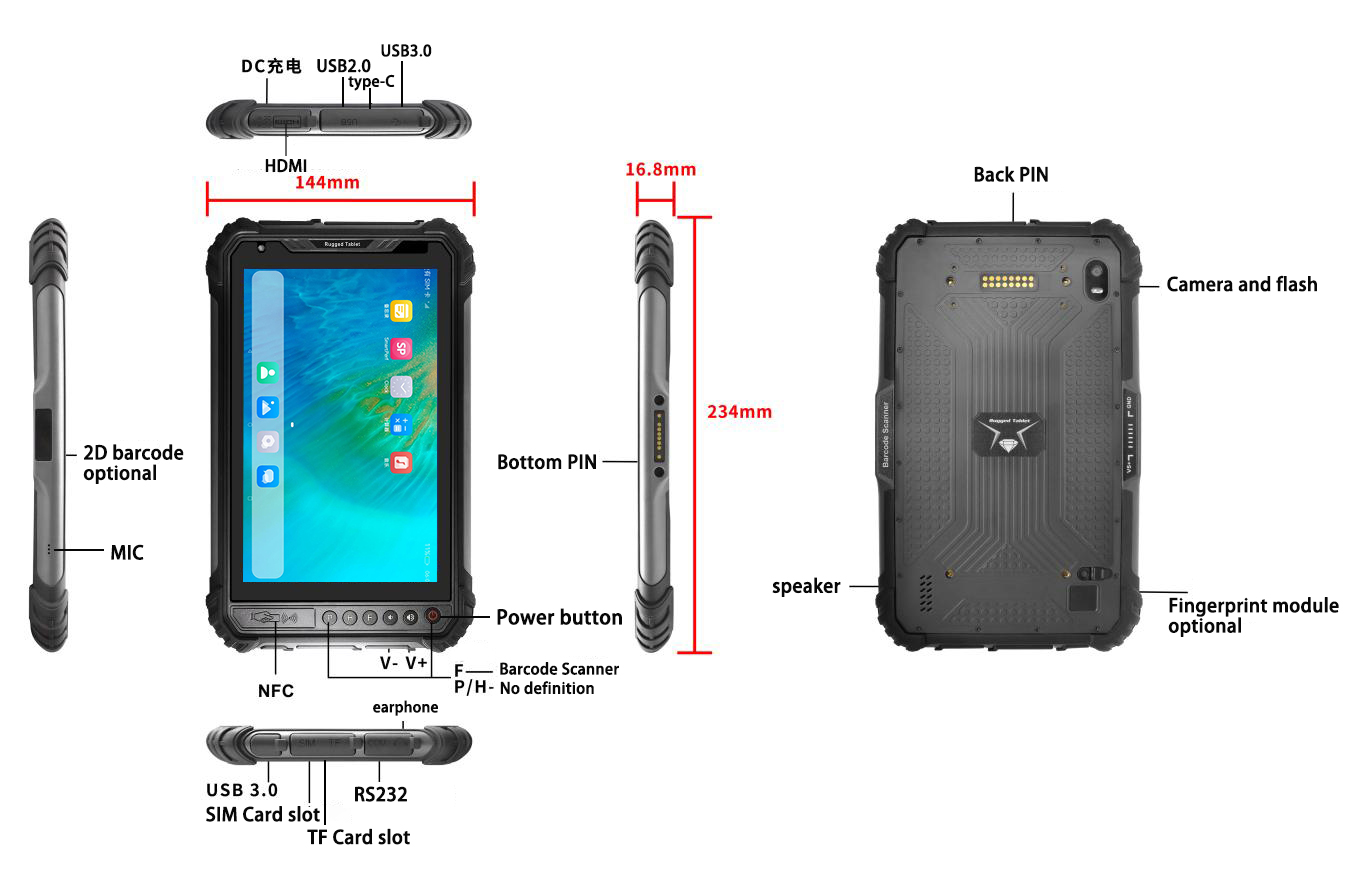

Interfaces de Entrada/SaídaType-C *1 (OTG/carga rápida), Slot para cartão SIM*1, Slot para cartão TF*1, Jack de fones*1, Porta DC*1 (4.0*15mm), 1×USB 2.0, 2×USB 3.0, 1×RS232 (mini-USB), 1×HDMI
Pinos pogopin inferiores: USB 2.0; Carregamento; RS232
Pinos pogopin traseiros: USB 2.0; RS232
Scanner de Código de Barras 1D/2DOpcional: NLS-N1 / M1 / SE2707
Classe de ProteçãoIP65 (à prova de poeira e água), resistência a quedas de 1.2m
CertificaçõesMIL-STD-810G, CE, FCC, 3C
Faixa de TemperaturaArmazenamento: -40°C a 60°C; Operação: -20°C a 55°C

Cenários de Aplicação

?
Ecossistema IoT HarmonyOS
?
Controle Industrial Inteligente
☀️
Uso ao Ar Livre (Alta Luminosidade)
?
Serviço e Manutenção no Local
