  1. Página inicial > Produto > Terminal móvel > Dispositivo móvel portátil

SH5-W

  • In Stock: 99999
  • Category: Dispositivo móvel portátil
$0 $0

O SH5-W é um terminal portátil robusto de 5,5 polegadas alimentado por processador quad-core Intel Cherry Trail Z8350 (1,44 GHz, turbo de até 1,92 GHz), rodando Windows 10 Pro (Home / IoT opcional). Possui armazenamento de 4 GB / 64 GB, tela IPS 1080 × 1920 de 5,5 polegadas (400nits), câmeras frontais / traseiras de 2 MP, bateria de 3.8V de 5000mAh (19,0Wh), conectividade 4G LTE (módulos EG91-EX / NAX), Intel WiFi 6 3165 e Bluetooth 4.2. Com IP65 à prova d 'água / poeira, resistência a quedas de 1,2 m, RFID UHF opcional (alcance de 1-5 M) e sensor de impressão digital, é

Buy Now Add to shopping cart
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

Visão geral do produto

O SH5-W é um terminal portátil robusto de 5,5 polegadas alimentado pelo processador quad-core Intel Cherry Trail Z8350 (1,44 GHz, turbo de até 1,92 GHz), rodando o Windows 10 Pro (Home / IoT opcional). Possui armazenamento de 4 GB / 64 GB, tela IPS 10801920 de 5,5 polegadas (400nits), câmeras frontais / traseiras de 2 MP, bateria de 5000mAh e 3,8 V (19,0 Wh), conectividade 4G LTE (módulos EG91-EX / NAX), Intel WiFi 6 3165 e Bluetooth 4.2. Com IP65 à prova d 'água / poeira, resistência a quedas de 1,2 m, RFID UHF opcional (alcance de 1-5 M) e sensor de impressão digital, foi projetado para aplicativos portáteis de coleta de dados industriais baseados em Windows e fluxo de trabalho móvel.

Key Features

  • Windows 10 Pro/Home/IoT optional, Intel Cherry Trail Z8350 (Quad Core, 1.44GHz/1.92GHz turbo)
  • Intel HD Graphics 400, 4GB RAM/64GB storage for efficient Windows operation
  • 5.5-inch 1080×1920 IPS display (400nits), 5-point touch for precise mobile interaction
  • 5000mAh 3.8V battery (19.0Wh), 5.5-hour video playback, 4-hour charging time
  • 4G LTE dual-module support (EG91-EX for EU/EG91-NAX for NA), Intel 3165 WiFi/Bluetooth 2-in-1
  • Optional UHF RFID (1-5M range, US/EU bands), 1D/2D barcode (Honeywell/RAKINDA options)
  • IP65 dust/waterproof, 1.2m drop resistance, compact design (180×87×20mm/350g)
  • Rich expansion: USB 3.0, Micro USB (OTG), dual pogopin interfaces (POE/RS232/charging)

Technical Specifications (SH5-W)

OS Windows 10 Pro
Windows 10 Home / IoT Optional
CPU Intel Cherry Trail Z8350 (Quad Core, Quad Threads; 1.44GHz)
Turbo can reach 1.92GHz
GPU Intel HD Graphics 400
RAM/ROM 4GB/64GB
LCD 5.5 inch; 1080×1920; 400nits; IPS Screen
Touch Screen 5 Point Touch
Camera Front: 2MP (GC2355); Rear: 5MP (OV5648)
Power and Battery 5000mAh; 3.8V (19.0Wh)
Charging time: about 4H
Usage time: 5H30min (50% volume, 60% brightness, playing local 1080P video)
WWAN 4G LTE, 3G WCDMA, GSM
EG91-EX (European Standards): FDD_LTE B1/B3/B7/B8/B20/B28; WCDMA B1/B8; GSM 900/1800MHz
EG91-NAX (American Standard): FDD_LTE B2/B4/B5/B12/B13/B25/B26; WCDMA B2/B4/B5
GPS BDS, GPS, GLONASS
WIFI 802.11a/b/g/n/ac Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G
Module: Intel Stone Peak 3165 (WiFi/Bluetooth 2-in-1)
BLUETOOTH 4.2 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO14443; TYPE A; Mifare
MIC Sensitivity: -32±2d; Output Impedance: 2.2kΩx1
SPEAKER 8Ω 1.0 Watt
Sensor Light sensor

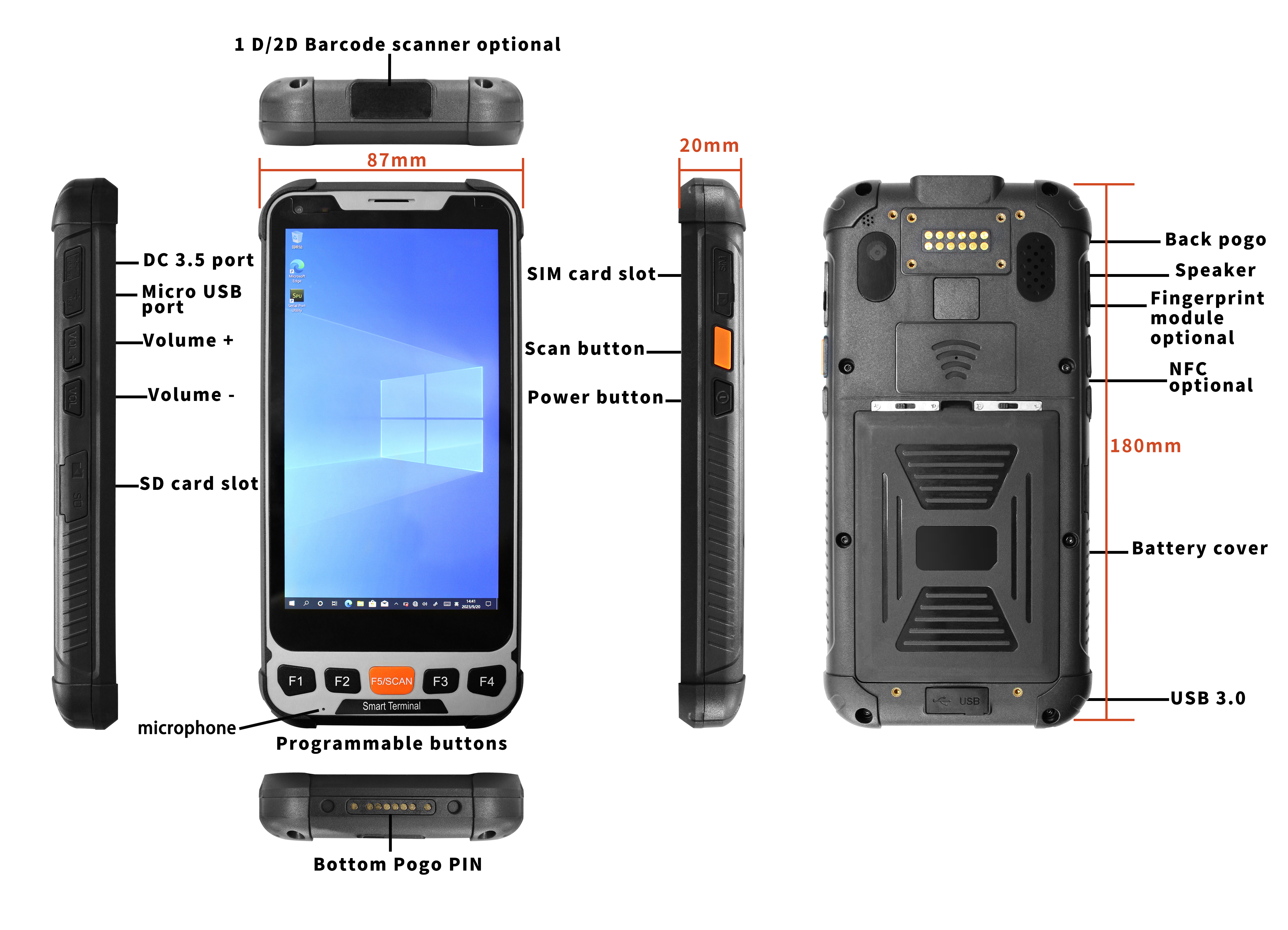

Size 180×87×20mm
Weight 350±20g
Language Multi language
Interface In/Out Port Micro USB*1 (OTG); SIM Card Slot*1; TF Card Slot*1; USB 3.0*1; DC*1 (3.5×12mm)
Bottom pogopin: USB 2.0; POE Charging
Back pogopin: USB 2.0; RS232; Charging
Button V+ -, Power, Barcode Scan*2
Customized Button: F1,F2,F3,F4
1D/2D Barcode Optional: 2D Honeywell N4680, 2D RAKINDA LV3296, 1D N4315
UHF RFID Optional
American standard M500 (902Mhz – 928Mhz): Built-in 1-2M, External 3-5M
European standard M500 (865MHz – 868MHz): Built-in 1-2M, External 3-5M
Fingerprint Optional: 1020A Optional
Accessories Blue Box; DC Charger (5V 3A); Hand strap; Screw
Optional: Docking Station
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

?
Logistics & Warehouse Management
?
Industrial Data Collection
?
Retail & Inventory Control
?
RFID Asset Tracking
